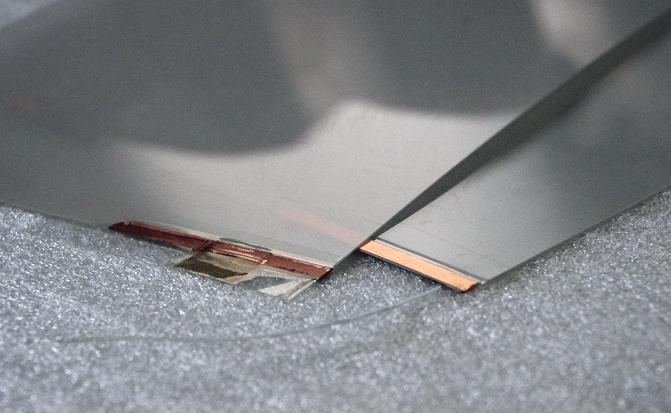

TECHNICAL DATA OF 3G SWITCHABLE FILM
FOR NPD-220, NPD-300 AND NPD-400 SERIES
3G 调光膜技术参数
NPD-220型, NPD-300型, NPD-400型
Name of Features
性能名称
Data and Results
参数和结果
Mode
模式
Positive
正型
Translucent (Power off)
散射 (断电)
Transparent (Power on)
透明 (通电)
Color
颜色
Milky White / Clear
乳白 / 透明
Thickness
厚度
0.375 mm or 0.015”
Size
尺寸
Flexible and up to 1.3 m x 2.85 m or 51” x 112”
可变, 最大到1.30 m x 2.85 m
Operation Temperature
操作温度
-10 to 60 °C, NPD-220型
-20 to 70 °C, NPD-300型
-30 to 80 °C, NPD-400型
Storage Temperature
储藏温度
- 30 to 70 °C
Driving Voltage
驱动电压
50 ± 5 V（AC, 50 – 60 Hz）NPD-220型
20 ± 5 V（AC, 50 – 60 Hz）NPD-300型
20 ± 5 V（AC, 50 – 60 Hz）NPD-400型
Current
电流
0.1 ( A/ m2 , 安培 / 平方米) NPD-220型
0.05 ( A/ m2 , 安培 / 平方米) NPD-300型
0.04 ( A/ m2 , 安培 / 平方米) NPD-400型
Energy Consumption
能源消耗
5 ( Watt/m2 , 瓦 / 平方米) NPD-220型
2 ( Watt/m2 , 瓦 / 平方米) NPD-300型
1.5 ( Watt/m2 , 瓦 / 平方米) NPD-400型
Transparency
透光率
> 75 %
Viewing Angle
视角
> 160 ° 透明态
360° 投影可视
视角变化，亮度不变
Response Time
响应速度
< 0.005 ( Seconds 秒) 开启速度
< 0.2 ( Seconds 秒) 关闭速度
Operational Lifetime
操作寿命
> 80,000,000 (Switching Times开关次数)
Scienstry, Inc.
1110 E. Collins Blvd. Suite 120 Tel: (972) 690-5880
Richardson, TX 75081 Fax: (972) 690-5888
SCDOC-1204
2
1. The above electrical and optical data were obtained with LCD Testing System MF-500 at ambient temperature, 24 ºC.
上述光电数据由LCD检测系统MF-500, 在室温24 ºC下获得.
2. Although the film has passed a high voltage test, for extending the operational lifetime of the film, the driving voltage should not go beyond 100V. Calculation for suitable driving voltage with standard wiring is: Driving Voltage = SV + SRC, SV ― Standard Voltage, SRC ― Sheet Resistance Compensation. SRC = 5V x Distance between electrodes in foot.
虽然该薄膜已经通过高电压测试,为了延长操作寿命, 驱动电压不应超过100V. 适合的驱动电压（标准电极）计算：驱动电压 = SV + SRC， SV ─ 标准电压，SRC ─ 膜电阻补偿，SRC = 5V x 电极距离（单位尺）。
3. The above data are typical values. Due to continual research and development on the products, the data may change without notice.
上述参数为典型实测数据.由于产品不断的研究开发，这些参数在不通知的情况下可能变化。
4．Scienstry will provide a one year warranty for satisfactory in-door performance and against defects in workmanship as well as on electric failure for unmodified products. Scienstry may select either to replace the film at its cost or to credit refund to the customer.
美国科化将对室内使用，未被改动和未经处理过的产品，所产生的缺陷及电性能故障提供一年的质量保证。美国科化有权选择替换产品或补偿客户购买的费用。 | |
|
